Ceramic Cross Partition Ring
Plastic saddle ring, Plastic super saddle ring, Ceramic super saddle ring, Ceramic Berl saddle ring

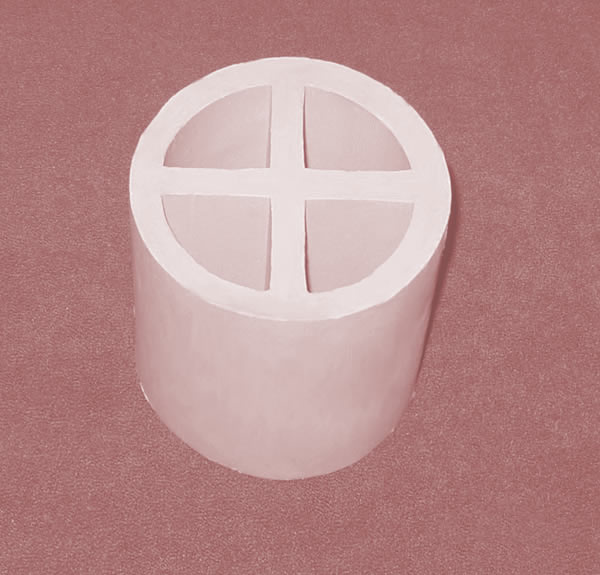

Ceramic Cross Partition Ring is a kind of random packing further improved on the basis of Raschig Ring, adding the cross clapboard inside the ring. It increases the ring’s surface area, improving significantly the mass transfer efficiency of vapor and liquid.
Generally, cross partition ring is required to stack orderly in the column due to its big size. Currently, cross partition rings, size between Φ80-Φ150mm, are used as the support material of other random packing at the bottom of column, which accumulation voidage is over 60%.
With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cross Partition Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.
Technical Specification
Size, mm |
D x H x T, mm |
Surface area, m²/m³ |
Free volume, % |
Number per m³ |
Bulk density , Kg/m³ |
Dry Packing Factor, m-1 |
Φ 50 |
50x40x50x5 |
145 |
50 |
6400 |
600 |
565 |
Φ 80 |
80x64x80x8 |
120 |
56 |
1950 |
820 |
356 |
Φ100 |
100x80x100x10 |
110 |
53 |
1000 |
850 |
252 |
Φ120 |
120x96x120x12 |
75 |
55 |
370 |
860 |
146 |
Φ150 |
150x120x150x15 |
60 |
58 |
295 |
980 |
101 |
